Description
seed planting machine agriculture Intelligent Industrial Onion Seed Planter Machine Cost-effectiveIntelligent Industrial Onion Seed Planter Machine Cost effective 1. Product introduction of Onion Seed Planter Machine: The loading and conveying device has a frequency conversion speed control system, which matches the speed of the next process. With automatic photoelectric induction detection system, no soil is loaded and no seeds are sown. With the one button operation system, the soil spreading, hole pressing and seeding are integrated to complete
Intelligent Industrial Onion Seed Planter Machine Cost-effective
1.Product introduction of Onion Seed Planter Machine:
The loading and conveying device has a frequency conversion speed control system, which matches the speed of the next process. With automatic photoelectric induction detection system, no soil is loaded and no seeds are sown. With the one-button operation system, the soil spreading, hole pressing and seeding are integrated to complete a simple, practical and fast seed recovery device, so that the seeds are not wasted. It is applicable to seeds between 0.3-12mm, with unlimited seed shape and wide application range. You can choose to add soil loader and sprinkler.
1. All are made of stainless steel.
2. According to different seeds and seeding requirements, corresponding seeding plates and seed suction nozzles shall be equipped. The minimum size of seeds shall be greater than 0.3mm and the maximum size shall not exceed the size of soybeans. Conventional pepper, tomato and grass flower seeds are applicable.
3. It can be equipped with 21, 32, 50, 72,105,128,200 holes of seeding plate. The seeding plate is matched with the hole plate, and the hole plate must be 540 * 280mm in size.
4. The depth of seed insertion into the substrate can be adjusted according to the growth requirements of different varieties.
5. One plate at a time when seeding, and the seeding speed is more than 600 plates per hour.
6. The machine is small in size, light in weight, flexible in operation and simple in structure.
2.Technical parameters & Quotation of Onion Seed Planter Machine:
Small one-size-fits-all seedling machine
|
Model |
WM-YM300 |
|
Dimension |
2000*900*1100mm |
|
Weight |
80kg |
|
Capacity |
200-300plate/h |
|
Voltage |
220V |
|
Power |
265W |
|
Air compressor power |
4kw |
|
work process |
Pressing holes - sowing - covering soil |
|
Seeding accuracy |
95%-98% |
|
working principle |
Electric and Air Compressor |
WM-YM800 Automatic Seedling System Production Line
|
Product |
Specification |
|
Matrix Tray Loading Machine |
① Dimensions (mm): 1200*900*1400; ② Machine power/voltage: 265W/220V; ③ Maximum size of applicable plug tray (mm): 600*400; ④ The feeding and conveying device is equipped with a variable frequency speed regulation system, which fully matches the speed of the next process; ⑤ It has an automatic detection photoelectric sensing system, and it will not feed if there is no tray. When the soil is full, it will automatically detect and stop |
|
Needle suction seeder/stand-alone |
① Overall dimensions (mm): 1200*900*1100; ② Machine power/voltage: 120W/220V; ③ The equipment is equipped with a needle unblocking function to ensure that the needle is unblocked during operation; ④ High-precision infrared sensing system is used for precise positioning; ⑤ The equipment is equipped with a customized mesh seed bucket, which plays a role in filtering impurities during operation to ensure the sowing rate; ⑥ High-precision electrical control system to ensure that seeds can be accurately sown into the holes; ⑦ Special seed recovery device to prevent seed waste; ⑧ Suitable for seeds between 0.3-15mm, with no restrictions on seed shape. |
|
Soil Covering Machine |
① Dimensions (mm): 1200*900*1400; ② Machine power/voltage: 120W/220V; ③ The conveying device is equipped with a variable frequency speed regulation system to ensure the synchronous operation of the assembly line; ④ It has a photoelectric sensing system to automatically complete the soil covering operation; ⑤ Simply adjust the upper and lower scraper brushes to meet the required soil covering amount of the hole tray. |
|
Sprinkler |
① Dimensions (mm): 1200*900*1400; ② Power/voltage: 120W/220V; ③ The conveying device is equipped with a variable frequency speed regulation system to ensure synchronous operation of the assembly line; ④ It has a photoelectric sensing system to automatically complete the water spraying and atomization operation; |
|
Conveyor Belt |
① Dimensions (mm): 1200*900*1400 ② Power/voltage: 120W/220V; ③ The conveying device is equipped with a variable frequency speed regulation system to ensure synchronous operation of the assembly line; |
|
Air Compressor |
① 3kw; 0.36m³/min; 8HP ② Capacity 80L, weight 80kg, |
|
Feeder |
① Dimensions (mm): 2200*900*400; ② Power/voltage: 120W/220V; |
|
Blender |
① Overall dimensions (mm): diameter 1200, height 1200, single 150 kg ② Machine power/voltage: 3.3KW/380V |
|
Decompression machine |
① Dimensions (mm): Length, width and height 2000*900*1000, capacity 300 liters ② Power/voltage: 4KW/380V |
Contact Us to Get a Quote

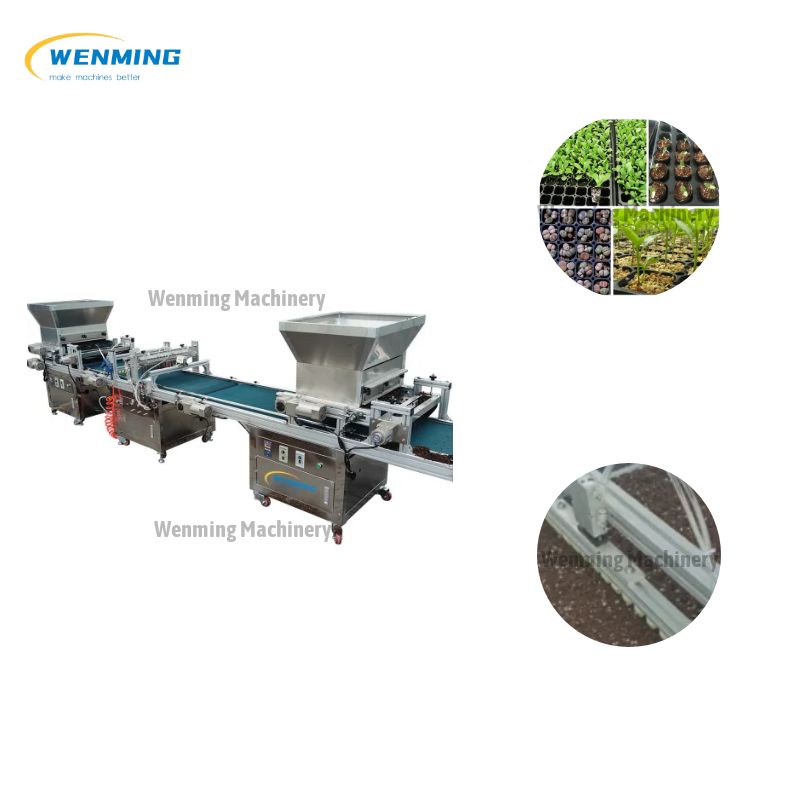

3.Pictures of Onion Seed Planter Machine:
